Scroll down to view all New Equipment

Top Load Washers

Whirlpool Heavy Duty Commercial Top Load Washer model CAM2742TQ

2007 Federal Energy Compliant Mechanical Metered Washer

Whirlpool Heavy Duty Commercial Top Load Washer model CAM2742TQ Whirlpool Heavy Duty Commercial Top Load Washer model CAM2742TQ Whirlpool Heavy Duty Commercial Top Load Washer model CAM2742TQ

Model: CAM2742TQ

FEATURES
  • Factory Coinslide and Coinbox Equipped, $1.50 Factory Preset Vend V8 Coinslide
  • 3.2 Cu Ft Basket
  • Automatic Electronic Temperature Controlled, Regular and Gentle Cycles
  • 115F hot, 85F Warm Wash
  • High Speed Spin on All Cycles
  • Powdered Paint Top, Lid and Wrap Cabinet
  • Reliable, Direct-Drive NO BELTS Drive System
  • Front and Bottom Serviceable
  • Two-Speed Advantage with True Gentle Wash, High-Speed Spin Only!
  • 1/2-HP Motor with Built-In Overload Protector: 120-volt, 60 Hz.
  • AC Agitation Speed 180 spm/high 120 spm/low
  • High Speed Spin 640 rpm (approx.)
  • Commercial Grade Water Inlet Hoses and Polypropylene Drain Hose Included
  • Shipping Weight: 184 lbs.
  • 2 Year Limited Parts Warranty US


Whirlpool Heavy Duty Commercial Top Load Washer model CAM2752TQ

2007 Federal Energy Compliant Mechanical Metered Washer

Whirlpool Heavy Duty Commercial Top Load Washer model CAM2742TQ Whirlpool Heavy Duty Commercial Top Load Washer model CAM2742TQ Whirlpool Heavy Duty Commercial Top Load Washer model CAM2742TQ

Model: CAM2752TQ

FEATURES
  • Factory Coinslide and coinbox equipped, $1.50 factory preset vend V8 coinslide
  • 3.2 Cu Ft basket
  • Automatic ElectronicTemperature Controlled regular and gentle cycles
  • 115F hot, 85F warm wash
  • High speed spin on all cycles
  • Porcelain top, lid and cabinet
  • Reliable, Direct-Drive NO BELTS drive system
  • Front and bottom serviceable
  • Two-Speed Advantage with true gentle wash, high-speed spin only!
  • 1/2-HP Motor with built-in Overload Protector: 120-volt, 60 Hz.
  • AC Agitation Speed 180 spm/high 120 spm/low
  • High Speed Spin 640 rpm (approx.)
  • Commercial-Grade Drain and Water Inlet Hoses
  • Shipping Weight: 184 lbs.
  • 3 year limited parts only warranty US


Whirlpool Heavy Duty Commercial Top Load Washer model CAM2762TQ

2007 Federal Energy Compliant Mechanical Metered Washer

Whirlpool Heavy Duty Commercial Top Load Washer model CAM2742TQ Whirlpool Heavy Duty Commercial Top Load Washer model CAM2742TQ Whirlpool Heavy Duty Commercial Top Load Washer model CAM2742TQ

Model: CAM2762TQ

FEATURES
  • 3.2 Cu Ft basket
  • Automatic Electronic Temperature Controlled regular and gentle cycles
  • 115F hot, 85F warm wash
  • High speed spin on all cycles
  • Porcelain top, lid and cabinet
  • Reliable, Direct-Drive NO BELTS drive system
  • Front and bottom serviceable
  • Two-Speed Advantage with true gentle wash, high-speed spin only!
  • 1/2-HP Motor with built-in Overload Protector: 120-volt, 60 Hz.
  • AC Agitation Speed 180 spm/high 120 spm/low
  • High Speed Spin 640 rpm (approx.)
  • Commercial-Grade Drain and Water Inlet Hoses
  • Shipping Weight: 184 lbs.
  • 3 year limited parts warranty US


Whirlpool Heavy Duty Commercial Top Load Washer model GCAM2792TQ

2007 Federal Energy Compliant On Premise Full Console Mechanical Washer

Whirlpool Heavy Duty Commercial Top Load Washer model CAM2742TQ Whirlpool Heavy Duty Commercial Top Load Washer model CAM2742TQ Whirlpool Heavy Duty Commercial Top Load Washer model CAM2742TQ

Model: GCAM2792TQ

FEATURES
  • 3.2 Cu Ft basket
  • Automatic Electronic Temperature Controlled regular and gentle cycles
  • 115F hot, 85F warm wash
  • High speed spin on all cycles
  • Powdered paint top, lid and wrap cabinet
  • Reliable, Direct-Drive NO BELTS drive system
  • Front and bottom serviceable
  • Two-Speed Advantage with true gentle wash, high-speed spin only!
  • 1/2-HP Motor with built-in Overload Protector: 120-volt, 60 Hz.
  • AC Agitation Speed 180 spm/high 120 spm/low
  • High Speed Spin 640 rpm (approx.)
  • Residential-Grade, Water Inlet Hoses
  • Corrugated polypropylene Drain Hose included
  • Shipping Weight: 184 lbs.
  • 2 Year Limited Parts Warranty, US


Whirlpool Heavy Duty Commercial Top Load Washer model CAM2762TQ

2007 Federal Energy Compliant Mechanical Metered Washer

Whirlpool Heavy Duty Commercial Top Load Washer model CAM2742TQ Whirlpool Heavy Duty Commercial Top Load Washer model CAM2742TQ Whirlpool Heavy Duty Commercial Top Load Washer model CAM2742TQ

Model: CAM2762TQ

FEATURES
  • 3.2 Cu Ft basket
  • Automatic Electronic Temperature Controlled regular and gentle cycles
  • 115F hot, 85F warm wash
  • High speed spin on all cycles
  • Porcelain top, lid and cabinet
  • Reliable, Direct-Drive NO BELTS drive system
  • Front and bottom serviceable
  • Two-Speed Advantage with true gentle wash, high-speed spin only!
  • 1/2-HP Motor with built-in Overload Protector: 120-volt, 60 Hz.
  • AC Agitation Speed 180 spm/high 120 spm/low
  • High Speed Spin 640 rpm (approx.)
  • Commercial-Grade Drain and Water Inlet Hoses
  • Shipping Weight: 184 lbs.
  • 3 year limited parts warranty US


Front Load Washers

Whirlpool Heavy Duty Commercial Front Load Washer model CHW9900VQ

27" High Efficiency Front-Load Washer

Whirlpool Heavy Duty Commercial Top Load Washer model CAM2742TQ

Model: CHW9900VQ

FEATURES
  • 2.99 Cu. Ft. Wash Basket
  • Push Button Controls
  • High Efficiency, Low Water Factor
  • Combination of 9 Cycle Options
  • Variable Speed Motor for Best Cleaning Performance
  • Front Control Panel 24° Angle
  • Front Controls for Ease-of-Use
  • Time Remaining Display
  • Automatic Water Level Control
  • Porcelain Finish on Top with Backsplash Resists Chipping and Scratching
  • High Speed Spin 800 RPM (approx.), Reduces Dry Time
  • Removable Front Service Panel
  • Commercial Grade Water Inlet Hoses with Brass Couplings
  • ENERGY STAR® Rated
  • 3 Year Limited Parts Only Warranty

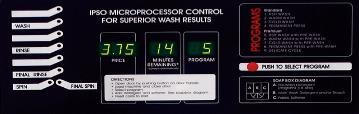

Ipso Front Load
Washer IHC Series

Ipso Front Load Washer Extractor IHC Series 12lb 18lb 25lb 35lb Front View Ipso Front Load Washer Extractor IHC Series 12lb 18lb 25lb 35lb Control View
  IHC012
 IHC018
 IHC025
 IHC035
Capacity - lb (kg)
 12 (5.5)
 18 (8.2)
 25 (11.3)
 35 (15.9)
Height - in (mm)
 40 7/8" (1038)
 40 9/16" (1031)
 40 9/16" (1031)
 47 5/16" (1202)
Width - in (mm)
 26" (660)
 26" (660)
 26" (660)
 33 11/16" (780)
Depth - in (mm)
 27 3/16" (691)
 31 5/16" (796)
 35 1/4" (896)
 39 1/4" (998)
Door Opening - in (mm)
 11 13/16" (300)
 11 13/16" (300)
 11 13/16" (395)
 11 13/16" (300)
Net Weight - lb (kg)
 417 (189)
 481 (218)
 481 (218)
 800 (363)
Crated Weight - lb (kg)
 450 (204)
 514 (233)
 514 (233)
 844 (383)
Cylinder Dimensions
- Diameter - in (mm)
- Depth - in (mm)
- Volume - cu.ft. (liter)
20 7/8" (530)
9 13/16" (250)
1.94 (55)
20 7/8" (530)
13 9/16" (345)
2.68 (76)
20 7/8" (530)
13 9/16" (345)
2.68 (76)
25 9/16" (650)
15 3/4" (400)
5.83 (165)
Cylinder Speed
- Wash - RPM
- Extract - RPM
- G-Force - RPM
- Drain Size - in (mm)
- Water Inlet - in (#)
- Inverter Drive
10-50
500-1250
462
2" (50)
3/4" (3)
Yes
10-50
500-1000
296
2" (50)
3/4" (3)
Yes
10-50
500-1000
296
2" (50)
3/4" (3)
Yes
10-50
250-1000
380
2" (50)
3/4" (3)
Yes
Voltage/Hz/Phase
Circuit Breaker
 200-240/50-60/1-3
 200-240/50-60/1-3
 200-240/50-60/1-3
 200-240/50-60/1-3
Agency Approvals
 CE, ETLus, ETLc
 CE, ETLus, ETLc
 CE, ETLus, ETLc
 CE, ETLus, ETLc



Brand New Ipso Front Load Washer Extractor Coin-Opl

Brand New Ipso Front Load Washer Extractor Coin-Opl Brand New Ipso Front Load Washer Extractor Coin-Opl Brand New Ipso Front Load Washer Extractor Coin-Opl

Stainless Steel Finish IWF Series

Models Available:
IWF014 - 14 lb
IWF018 - 18 lb
IWF025 - 25 lb
IWF030 - 30 lb
IWF040 - 40 lb
IWF055 - 55 lb
IWF075 - 75 lb
IWF090 - 90 lb

Please Call (888) 205-0884 for more information


Dryers

Whirlpool Heavy Duty Commercial Electric Dryer model CEM2750TQ

27" Full Feature Mechanical Factory Coin Equipped Electric Dryer

Whirlpool Heavy Duty Commercial Top Load Washer model CAM2742TQ Whirlpool Heavy Duty Commercial Top Load Washer model CAM2742TQ Whirlpool Heavy Duty Commercial Top Load Washer model CAM2742TQ

Model: CEM2750TQ

FEATURES
  • Factory Coinslide and coinbox equipped, $1.00 vend V8 coinslide
  • Porcelain top, powder coat cabinet, removable in door lint filter
  • Reversible Side Swing Door
  • Element Rated at 5600 Watts 240Volts
  • Electrical Requirements: 3-wire nominal, 240V, 60 Hz., AC,
  • Standard 30-amp
  • Fused or circuit breaker branch circuit for each dryer (subject to local codes)
  • Motor: 1/3-HP with built-in Overload Protector
  • Shipping Weight: 134 lbs.
  • Power Cord Sold Separately
  • 3 year limited parts only warranty
  • Available in US only


Whirlpool Heavy Duty Commercial Electric Dryer model CEM2760TQ

27" Mechanical Metered Full Feature Electric Dryer

Whirlpool Heavy Duty Commercial Top Load Washer model CAM2742TQ Whirlpool Heavy Duty Commercial Top Load Washer model CAM2742TQ Whirlpool Heavy Duty Commercial Top Load Washer model CAM2742TQ

Model: CEM2760TQ

FEATURES
  • Can be Equipped with coin slide, retrofit coin drop or card reader kit
  • Porcelain top, powder coat cabinet, removable in door lint filter
  • Reversible Side Swing Door
  • Element Rated at 5600 Watts 240Volts
  • Electrical Requirements 3-wire nominal, 240V, 60 Hz., AC,
  • standard 30-amp
  • Fused or circuit breaker branch circuit for each dryer (subject to local codes)
  • Motor 13-HP with built-in Overload Protector
  • Shipping Weight 134 lbs.
  • Power Cord Sold Separately
  • 3 Year Limited Parts Warranty
  • Available in US only


Whirlpool Heavy Duty Commercial Gas Dryer model CGM2761TQ

27" Mechanical Metered Full Feature Gas Dryer

Whirlpool Heavy Duty Commercial Top Load Washer model CAM2742TQ Whirlpool Heavy Duty Commercial Top Load Washer model CAM2742TQ Whirlpool Heavy Duty Commercial Top Load Washer model CAM2742TQ

Model: CGM2761TQ

FEATURES
  • Factory Coinslide and coinbox equipped, $1.00 vend V8 coinslide
  • Can be Equipped with coinslide, retrofit coin drop or card reader kit
  • Porcelain top, powder coat cabinet, removable in door lint filter
  • Reversible Side Swing Door
  • Amount and type of gas: 22,000 BTU (natural gas) per hour. Burner orifices are available for manufactured, natural, mixed, or LP gas with varying BTU ranges.
  • Electrical Requirements: 3-wire nominal, 240V, 60 Hz., AC,
  • Branch circuit for each dryer (subject to local codes)
  • Motor: 1/3-HP with built-in Overload Protector
  • Shipping Weight: 134 lbs.
  • Power Cord Sold Separately
  • 3 Year Limited Parts Warranty
  • Available in US only


Whirlpool Heavy Duty Commercial Electric Dryer model CSP2760TQ

Electric Stack Dryer with Mechanical Dual Metercase

Whirlpool Heavy Duty Commercial Top Load Washer model CAM2742TQ Whirlpool Heavy Duty Commercial Top Load Washer model CAM2742TQ Whirlpool Heavy Duty Commercial Top Load Washer model CAM2742TQ

Model: CSP2760TQ

FEATURES
  • Money Acceptors Not Included, 2 Required
  • Can be Equipped with Coinslide, Coin Drop, Card Reader, or OPL Push to Start Kit
  • Large Glass Doors Standard, for Solid Doors Order Door Kit 4396720
  • Powdered Paint Top and Cabinet
  • Removable in Door Lint Filters
  • Stacked Unit Gives You Double Dry Capacity in Limited Space
  • Dual T40 Torx and Pin Security Kit Included
  • (2) Elements Rated at 5600 Watts and 240 Volt, (2) 30 Amp Circuit Breakers Required
  • Electrical Requirements: 3 or 4 Wire Nominal, 240/208V, 60 Hz., AC, standard 30- amp Fused or Circuit Breaker Branch Circuit per Dryer Drum (Subject to Local Codes)
  • 2 Motors: 1/3-HP with Built-In Overload Protector; Centrifugal Switch Turns Off Heating Element When Motor Stops
  • 3-Way Venting (Upper Dryer)
  • 4-Way, Multi-Vent Options (Lower Dryer)
  • Shipping Weight: 294 lbs.
  • Power Cords Sold Separately, 2 Required
  • 3 Year Limited Parts Warranty


Whirlpool Heavy Duty Commercial Gas Dryer model CSP2761TQ

Gas Stack Dryer with Mechanical Dual Metercase

Whirlpool Heavy Duty Commercial Top Load Washer model CAM2742TQ Whirlpool Heavy Duty Commercial Top Load Washer model CAM2742TQ Whirlpool Heavy Duty Commercial Top Load Washer model CAM2742TQ

Model: CSP2761TQ

FEATURES
  • Money Acceptors Not Included, 2 Required
  • Can be Equipped with Coinslide, Coin Drop, Card Reader, or OPL Push to Start Kit
  • Large Glass Doors Standard, for Solid Doors Order Door Kit #4396720
  • Powdered Paint Top and Cabinet
  • Removable In-Door Lint Filters
  • Stacked Unit Gives You Double Drying Capacity in Limited Space
  • Dual T40 Torx and Pin Security Kit Included
  • (2) 22K BTU Burners
  • Electrical Requirements: Nominal, 120V, 60 Hz., AC, 15-Amp Fused or Circuit
  • Breaker Branch Circuit per Dryer Drum (subject to local codes)
  • 2 Motors: 1/3-HP with built-in Overload Protector; Centrifugal Switch Turns Off
  • Heating Element When Motor Stops
  • 3-Way Venting (Upper Dryer)
  • 4-Way, Multi-Vent Options (Lower Dryer)
  • Order (2) LP Conversion Kits, Part #49572
  • Shipping Weight: 300 lbs.
  • 3 Year Limited Parts Warranty
  • Available in US Only


Whirlpool Heavy Duty Commercial Gas Dryer model CGM2941TQ

29” Mechanical Metered Base Gas Dryer

Whirlpool Heavy Duty Commercial Top Load Washer model CAM2742TQ Whirlpool Heavy Duty Commercial Top Load Washer model CAM2742TQ Whirlpool Heavy Duty Commercial Top Load Washer model CAM2742TQ

Model: CGM2941TQ

FEATURES
  • Factory Coinslide and coinbox equipped, $1.00 vend V8 coinslide
  • Top lock and coinbox locks factory installed, keys secured to meter
  • Powdered paint cabinet and top, removable in top lint filter
  • Amount and type of gas: 22,000 BTU (natural gas) per hour. Burner orifices are available for manufactured, natural, mixed, or LP gas with varying BTU ranges.
  • Electrical requirements: Nominal, 120V, 60 Hz., AC., standard 15-amp fuse
  • Branch circuit for each dryer (subject to local codes)
  • Motor: 1/3-HP with built-in Overload Protector; Centrifugal Switch
  • Shipping Weight: 138 lbs.
  • Power Cord Sold Separately
  • Units come with 1 moneybox key. Multiple units may or may not be keyed alike.
  • Only distributors offer keyed alike service for a fee
  • 2 Year Limited Parts Warranty, US Only


Whirlpool Heavy Duty Commercial Electric Dryer model CEM2940TQ

29” Mechanical Metered Base Electric Dryer

Whirlpool Heavy Duty Commercial Top Load Washer model CAM2742TQ Whirlpool Heavy Duty Commercial Top Load Washer model CAM2742TQ Whirlpool Heavy Duty Commercial Top Load Washer model CAM2742TQ

Model: CEM2940TQ

FEATURES
  • Factory Coinslide and coinbox equipped, $1.00 vend V8 coinslide
  • Top lock and coinbox locks factory installed, keys secured to meter
  • Powdered paint cabinet and top, removable in top lint filter
  • Element Rated at 5600 Watts 240Volts
  • Electrical Requirements: 3-wire nominal, 240V, 60 Hz., AC, standard 30-amp fuse
  • Motor: 1/3-HP with built-in Overload Protector; Centrifugal Switch
  • Shipping Weight: 134 lbs.
  • Power Cord Sold Separately
  • Units come with 1 moneybox key. Multiple units may or may not be keyed alike.
  • Only distributors offer keyed alike service for a fee.
  • 2 year limited parts warranty US only


Whirlpool Heavy Duty Commercial Gas Dryer model CGM2751TQ

27” Mechanical Metered Base Gas Dryer

Whirlpool Heavy Duty Commercial Top Load Washer model CAM2742TQ Whirlpool Heavy Duty Commercial Top Load Washer model CAM2742TQ Whirlpool Heavy Duty Commercial Top Load Washer model CAM2742TQ

Model: CGM2751TQ

FEATURES
  • Factory Coinslide and coinbox equipped, $1.00 vend V8 coinslide
  • Top lock and coinbox locks factory installed, keys secured to meter
  • Powdered paint cabinet and top, removable in top lint filter
  • Reversible Side Swing Door
  • Amount and type of gas: 22,000 BTU (natural gas) per hour. Burner orifices are available for manufactured, natural, mixed, or LP gas with varying BTU ranges.
  • Electrical requirements: Nominal, 120V, 60 Hz., AC., standard 15-amp fuse
  • Branch circuit for each dryer (subject to local codes)
  • Motor: 1/3-HP with built-in Overload Protector; Centrifugal Switch
  • Shipping Weight: 138 lbs.
  • Power Cord Sold Separately
  • Units come with 1 money box key. Multiple units may or may not be keyed alike.
  • Only distributors offer keyed alike service for a fee
  • 3 year limited parts only warranty, US only


Whirlpool Heavy Duty Commercial Electric Dryer model CEW9100VQ

27" Electric Dryer Microprocessor with Metercase

Whirlpool Heavy Duty Commercial Top Load Washer model CAM2742TQ

Model: CEW9100VQ

FEATURES
  • Large 6.7 Cu. Ft. Drum Capacity
  • Four Roller Suspension with Permanently Lubricated Bearings
  • Push Button Controls
  • Large Lint Screen (84 Sq. In.)
  • Blower Guard Reduces Service Calls
  • Front Control Panel 24° Angle
  • Side-Swing Reversible Door
  • Porcelain Finish on Top with Backsplash Resists Chipping and Scratching
  • Front-Service Accessibility
  • Electric Heating Element at 5600 Watts 240-Volt
  • Gas Model Features a 24K BTU Burner
  • Motor: 1/3-HP with Built-In Overload Protector; Centrifugal Switch Turns Off
  • Heating Element in the Event of a Broken Belt
  • 3 Year Limited Parts Only Warranty
  • Money Acceptors Sold Separately


Whirlpool Heavy Duty Commercial Gas Dryer model CGW9100VQ

27" Gas Dryer Microprocessor with Metercase

Whirlpool Heavy Duty Commercial Top Load Washer model CAM2742TQ

Model: CGW9100VQ

FEATURES
  • Large 6.7 Cu. Ft. Drum Capacity
  • Four Roller Suspension with Permanently Lubricated Bearings
  • Push Button Controls
  • Large Lint Screen (84 Sq. In.)
  • Blower Guard Reduces Service Calls
  • Front Control Panel 24° Angle
  • Side-Swing Reversible Door
  • Porcelain Finish on Top with Backsplash Resists Chipping and Scratching
  • Front-Service Accessibility
  • Electric Heating Element at 5600 Watts 240-Volt
  • Gas Model Features a 24K BTU Burner
  • Motor: 1/3-HP with Built-In Overload Protector; Centrifugal Switch Turns Off
    • Heating Element in the Event of a Broken Belt
  • 3 Year Limited Parts Only Warranty
  • Money Acceptors Sold Separately



Brand New IPSO 30lb Stack Dryer Coin Op

Details
Stainless Steel Finish
Model No.: IPD30ST
Dimensions: H= 76 1/4", W= 31 1/2", D= 42 7/8"
Please Call (888) 205-0884 for more information


Brand New IPSO Stackable Washer/ Dryer

INFORMATION
White Finish
Model: BTGBCFSP111TW01 - unit with Gas Dryer
Model: BTEBCFSP171TW01 - unit with electrical Dryer
Please Call (888) 205-0884 for more information


Whirlpool Heavy Duty Commercial OPL Dryer GCEM2990TQ

Mechanical Full Console 29" On Premise Dryer (OPL)

Whirlpool Heavy Duty Commercial Top Load Washer model CAM2742TQ Whirlpool Heavy Duty Commercial Top Load Washer model CAM2742TQ Whirlpool Heavy Duty Commercial Top Load Washer model CAM2742TQ

Model: GCEM2990TQ

FEATURES
  • Powder coat top and cabinet, pull out top mount lint filter
  • Element Rated at 5600 Watts 240Volts
  • Electrical Requirements: 3-wire nominal, 240V, 60 Hz., AC, standard 30-amp
  • Fuse branch circuit for each dryer (subject to local codes)
  • Motor: 1/3-HP with built-in Overload Protector
  • Shipping Weight: 122 lbs.
  • Power Cord Sold Separately
  • 2 Year Limited Parts warranty


Whirlpool Heavy Duty Commercial OPL Dryer GCEM2991TQ

29” Mechanical On Premise Full Console Gas Dryer (OPL)

Whirlpool Heavy Duty Commercial Top Load Washer model CAM2742TQ Whirlpool Heavy Duty Commercial Top Load Washer model CAM2742TQ Whirlpool Heavy Duty Commercial Top Load Washer model CAM2742TQ

Model: GCEM2991TQ

FEATURES
  • Powder coat top and cabinet, pull out top mount lint filter
  • Element Rated at 5600 Watts 240Volts
  • Electrical Requirements: 3-wire nominal, 240V, 60 Hz., AC, standard 30-amp
  • Fuse branch circuit for each dryer (subject to local codes)
  • Motor: 1/3-HP with built-in Overload Protector
  • Shipping Weight: 122 lbs.
  • Power Cord Sold Separately
  • 2 Year Limited Parts warranty

Brand New Ipso Drying Tumblers OPL

Details
White Finish
Models Available
IPD50 - 50 lb
IPD75 - 75 lb
Please Call (888) 205-0884
for more information
Ipso Front Load Washer IWF Series OPL

Ipso Front Load
Washer IWF Series OPL

Ipso Front Load Washer Extractor IHC Series 12lb 18lb 25lb 35lb Front View Ipso Front Load Washer Extractor IHC Series 12lb 18lb 25lb 35lb Control View
  IWF014
 IWF018
 IWF025
 IWF030
 IWF040
 IWF055
 IWF075
Capacity - lb (kg)
 14 (6.5)
 18 (8.2)
 25 (11.3)
 30 (13.6)
 40 (18.5)
 55 (24.9)
 75 (34.0)
Width - in (mm)
 26" (660)
 26" (660)
 26" (660)
 30 11/16" (780)
 30 11/16" (780)
 33 7/8" (860)
 39" (990)
Depth - in (mm)
 31 3/8" (797)
 31 3/8" (797)
 33 1/4" (844)
 35 1/4" (897)
 39 3/8" (1000)
 40 11/16" (1034)
 46 5/8" (1184)
Height - in (mm)
 41" (1041)
 41" (1041)
 41" (1041)
 47 3/8" (1204)
 47 3/8" (1204)
 54 3/16" (1376)
 55 9/16" (1412)
Cylinder Dimensions
- Diameter - in (mm)
- Depth - in (mm)
- Volume - cu.ft. (liters)
20 7/8" (530)
11 5/8" (295)
2.30 (65)
20 7/8" (530)
13" (330)
2.58 (73)
20 7/8" (530)
17 5/16 (440)
3.35 (95)
25 9/16" (650)
15 3/4" (400)
4.66 (132)
26 3/4" (680)
19 11/16" (500)
6.39 (181)
29 1/2" (750)
20 7/8" (530)
8.26 (234)
33 7/16" (850)
21 1/8" (537)
10.74 (304)
Door Opening - in (mm)
 11 13/16" (300)
 11 13/16" (300)
 11 13/16" (300)
 11 13/16" (300)
 15 3/4" (400)
 15 3/4" (400)
 15 3/4" (400)
Cylinder Speed
- Wash - RPM
- Extract - RPM
- G-Force - RPM
- Drain Size - in (mm)
- Water Inlet - in (#)
- Inverter Drive
10-50
700
145
2" (50)
3/4" (3)
Standard
10-50
700
145
2" (50)
3/4" (3)
Standard

10-50
700
145
2" (50)
3/4" (3)
Standard

10-50
632
145
2" (50)
3/4" (3)
Standard
10-50
659
165
2" (50)
3/4" (3)
Standard
10-50
628
165
2" (50)
3/4" (3)
Standard
10-50
589
165
2" (50)
3/4" (3)
Standard
Voltage/Hz/Phase
Circuit Breaker/ FLA

(X)
(Q)
(P)
(N)
.

200-240/ 50-60/ 1-3 / 10
200-240/50-60 / 3 / 20
380-415/50-60/3 / 20
440-480/50-60/3 / 20


200-240/ 50-60/ 1-3 / 10
200-240/50-60 / 3 / 20
380-415/50-60/3 / 20
440-480/50-60/3 / 20


200-240/ 50-60/ 1-3 / 10
200-240/50-60 / 3 / 20
380-415/50-60/3 / 20
440-480/50-60/3 / 20


200-240/ 50-60/ 1-3 / 10
200-240/50-60 / 3 / 40
380-415/50-60/ 3 / 20
440-480/50-60/ 3 / 20


200-240/ 50-60/ 1-3 / 15
200-240/50-60 / 3 / 50
380-415/50-60/3 / 30
440-480/50-60/3 / 30


200-240/ 50-60/ 1-3 / 15
200-240/50-60 / 3 / 50
380-415/50-60/3 / 30
440-480/50-60/3 / 30


200-240/ 50-60/ 1-3 / 15
200-240/50-60 / 3 / 50
380-415/50-60/3 / 40
440-480/50-60/3 / 40
Net Weight - lb (kg)
 384 (174)
 399 (181)
 441 (200)
 617 (280)
 677 (307)
 844 (383)
 1177 (534)
Crated Weight - lb (kg)
   432 (196)
 461 (209)
 646 (293)
 725 (329)
 977 (443)
 1287 (584)
Agency Approvals
 CE, ETLus, ETLc
 CE, ETLus, ETLc
 CE, ETLus, ETLc
 CE, ETLus, ETLc
 CE, ETLus, ETLc
 CE, ETLus, ETLc
 CE, ETLus, ETLc
